Recessed Sensor Switch

ILUX Technical lighting

QAR 45

Product Details

**Microwave Motion Sensor Switch Features** This Microwave Sensor Switch is compatible with energy-saving lamps, incandescent lamps, fluorescent lamps, and LED lamps. The motion sensor can detect movement through materials such as glass, plastic, and wood; sensitivity can be adjusted during installation to meet your needs. It is designed for indoor use and can be mounted on ceilings or walls, making installation easy. The switch can retrofit 2-3 standard lamps to function as sensor lighting. It is suitable for use in hallways, corridors, stairwells, and similar locations. The sensor is more responsive to motion that moves across its front than to motion directed toward it.

Usage : Indoor/Outdoor

If ordering more than 20 Units, please submit a request for a quote (RFQ).

**Advanced Human Detection Technology:** Our Factory Direct Sale Recessed Human Presence Sensor Switch with Heartbeat Breathing Detection employs state-of-the-art technology to accurately and reliably detect human presence.

**Wide Sensing Range:** This sensor can detect human presence from a distance of 3 to 6.6 meters, allowing for flexible installation options, including a maximum installation height of 3 meters.

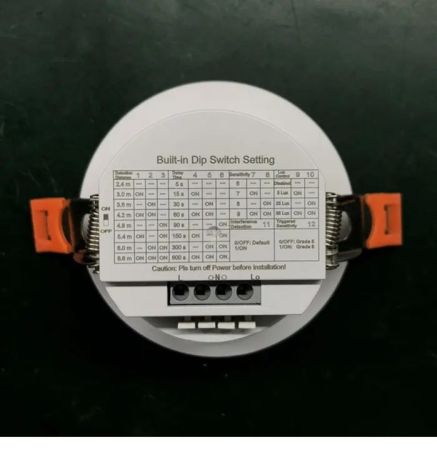

**Adjustable Sensitivity:** The built-in dip switch enables users to adjust sensitivity settings, allowing customization of hold time (between 5 to 600 seconds) and lux control (5, 10, or 50 lux, or disabled) to meet specific requirements.

**Compatibility with Various Lighting Systems:** This sensor is compatible with LED lamps, supporting a maximum load power of 200 watts and accommodating no more than three LED lamps.

**Long-Term Reliability and Support:** With a 3-year warranty and an IP31 rating designed to protect against dust and water, this product offers dependable long-term reliability and support for users.

WEIGHT & DIMENTIONS

Length(cm) :

Width(cm) :

Thickness(cm) :

Weight(kg) :

0.1

Material

Input Characteristics
Model No.	ILXSS200
Mains voltage	185-265V
Stand-by power	<0.5W
Load Rating	200W
Sensor Data
Sensor principle	HF Microwave
Operation Frequency	5.8GHz
Transmission power	<0.2mW
Detection range: Max(diameter*H)	8m*6m
Detection angle	360° Downward, 160° Forward
Hold time	5-600s(adjustable by built-in dip switch)
Environment
Operation Temperature(Ta)	-20~40°c
IP Rating	IP31

Lux Control	5/10/50Lux/disabled (adjustable by built-in dip switch)
Recessed Hole Size	Diameter 70--80mm
Size	888860mm
Sensor Distance	6m max (installation 3m height)
